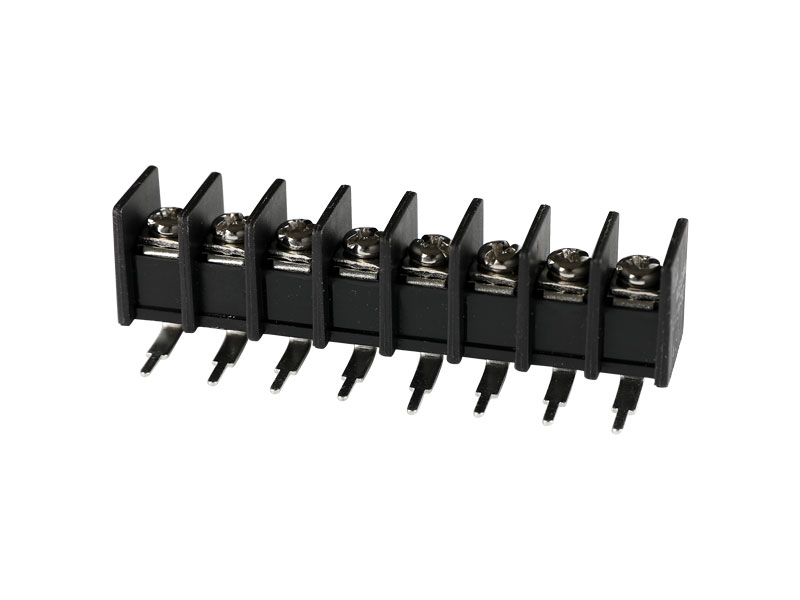

China MG49-9.5 BARRIER TERMINAL BLOCK Factory
+86-0574-63519570/+86-0574-63519552
China MG49-9.5 BARRIER TERMINAL BLOCK Factory
| 认证 |  |
APPROVAL | |
| 材质及电镀 | MATERIAL | ||
| 间距 | 9.5MM | Pitch | 9.5MM |
| 极数 | 2P-24P | Poles | 2P-24P |
| 螺丝 | M4、钢、镀镍 | Screws | M4、Steel、Ni Plated |
| 端子 | 黄铜、镀锡 | Wire guard | Brass、Tin Plated |
| 塑件 | PA66.UL94V-0 | Housing | PA66.UL94V-0 |
| 电气性能 | ELECTRICAL | ||
| 额定电压 | 300V | Rated voltage | 300V |
| 额定电流 | 20A | Rated current | 20A |
| 耐电压 | AC2000V/1Min | Withstanding Voltage | AC2000V/1Min |
| 使用线径 | 22-12AWG | Wire range | 22-12AWG |
| 机械性能 | MECHANICAL | ||
| 温度范围 | -40℃～+105℃ | Temp.Range | -40℃～+105℃ |
| 瞬时温度 | +250℃5秒 | MAX soldering | +250℃ for 5 sec. |
| 扭矩 | 1.2Nm(10.6lb.in) | Torque | 1.2Nm(10.6lb.in) |
