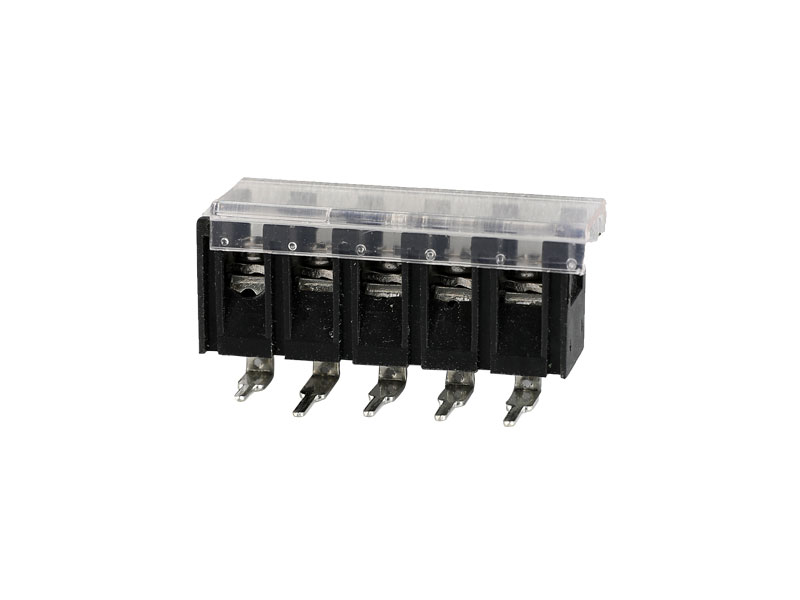

China MG78C-13.0 BARRIER TERMINAL BLOCK Factory
+86-0574-63519570/+86-0574-63519552
China MG78C-13.0 BARRIER TERMINAL BLOCK Factory
| 认证 |  |
APPROVAL | |
| 材质及电镀 | MATERIAL | ||
| 间距 | 13.0MM | Pitch | 13.0MM |
| 极数 | 2P-24P | Poles | 2P-24P |
| 螺丝 | M4、钢、镀镍 | Screws | M3、Steel、Ni Plated |
| 端子 | 黄铜、镀锡 | Wire guard | Brass、Tin Plated |
| 盖板 | PC | Cover | PC |
| 塑件 | PA66.UL94V-0 | Housing | PA66.UL94V-0 |
| 电气性能 | ELECTRICAL | ||
| 额定电压 | 750V | Rated voltage | 750V |
| 额定电流 | 40A | Rated current | 40A |
| 耐电压 | AC2500V/1Min | Withstanding Voltage | AC2500V/1Min |
| 使用线径 | 18-10AWG | Wire range | 18-10AWG |
| 机械性能 | MECHANICAL | ||
| 温度范围 | -40℃～+105℃ | Temp.Range | -40℃～+105℃ |
| 瞬时温度 | +250℃5秒 | MAX soldering | +250℃ for 5 sec. |
| 扭矩 | 16KGF.CM | Torque | 16KGF.CM |
