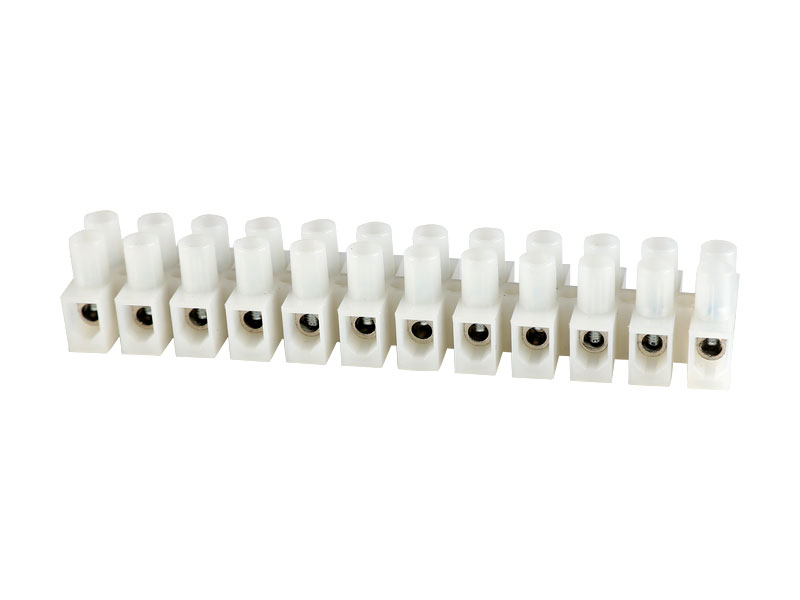

China MG10HWP FEED THROUGH TERMINAL BLOCK Factory
+86-0574-63519570/+86-0574-63519552
China MG10HWP FEED THROUGH TERMINAL BLOCK Factory
| 认证 |  |
APPROVAL | |
||
| 材质及电镀 | MATERIAL | ||||

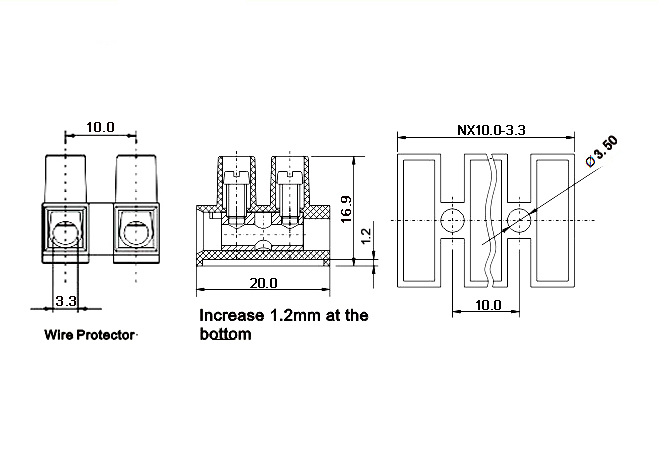

| 间距 | 10.0MM | Pitch | 10.0MM | ||
| 极数 | 2-12P | Poles | 2-12P | ||
| 螺丝 | M3、钢、镀锌 | Screws | M3、Steel、Zinc plated | ||
| 端子 | 合金、镀镍 | Contact | Alloy、Ni Plated | ||
| 簧片 | 不锈钢 | Clips | Stainless steel | ||
| 塑件 | PA66.UL94V-0 | Housing | PA66.UL94V-0 | ||
| 电气性能 | UL | IEC | ELECTRICAL | UL | IEC |
| 额定电压 | 300V | 450V | Rated voltage | 300V | 450V |
| 额定电流 | 20A | 24A | Rated current | 20A | 24A |
| 耐电压 | AC2500V/1Min | Withstanding Voltage | AC2500V/1Min | ||
| 使用线径 | 18-12AWG | Wire range | 18-12AWG | ||
| 机械性能 | MECHANICAL | ||||
| 温度范围 | -40℃～+105℃ | Temp.Range | -40℃～+105℃ | ||
| 扭矩 | 0.5Nm(4.4lb.in.) | Torque | 0.5Nm(4.4lb.in.) | ||
