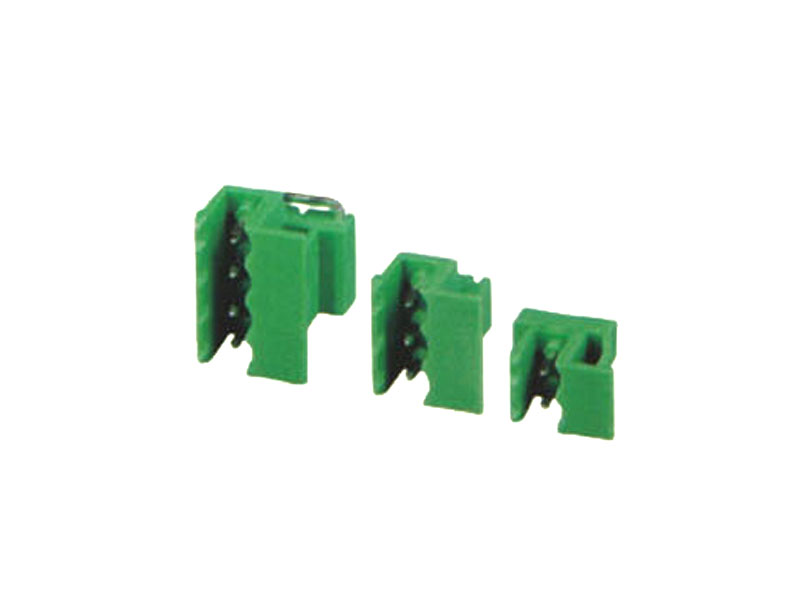

MG128R-5.0 PCB SCREW TERMINAL BLOCK Wholesale

MG128R-5.0
PCB SCREW TERMINAL BLOCK

认证		APPROVAL

材质及电镀		MATERIAL
间距	5.0MM	Pitch	5.0MM
极数	2P、3P	Poles	2P、3P
螺丝	M2.5、钢、镀锌	Screws	M2.5、Steel、Zinc Plated
方扣	钢、镀锌或黄铜、镀镍	Wire cage	Steel、Zinc plaed or Brass、Ni plated
焊针	黄铜、镀锡	Pin Header	Brass、Tin Plated
塑件	PA66.UL94V-0	Housing	PA66.UL94V-0

电气性能		ELECTRICAL
额定电压	300V	Rated voltage	300V
额定电流	15A	Rated current	15A
耐电压	AC2000V/1Min	Withstanding Voltage	AC2000V/1Min
使用线径	24-12AWG	Wire range	24-12AWG

机械性能		MECHANICAL
温度范围	-40℃～+105℃	Temp.Range	-40℃～+105℃
瞬时温度	+250℃5秒	MAX soldering	+250℃ for 5 sec.
扭矩	0.4Nm（3.5lb.in)	Torque	0.4Nm（3.5lb.in)
剥线长度	6-7mm	Strip length	6-7mm
