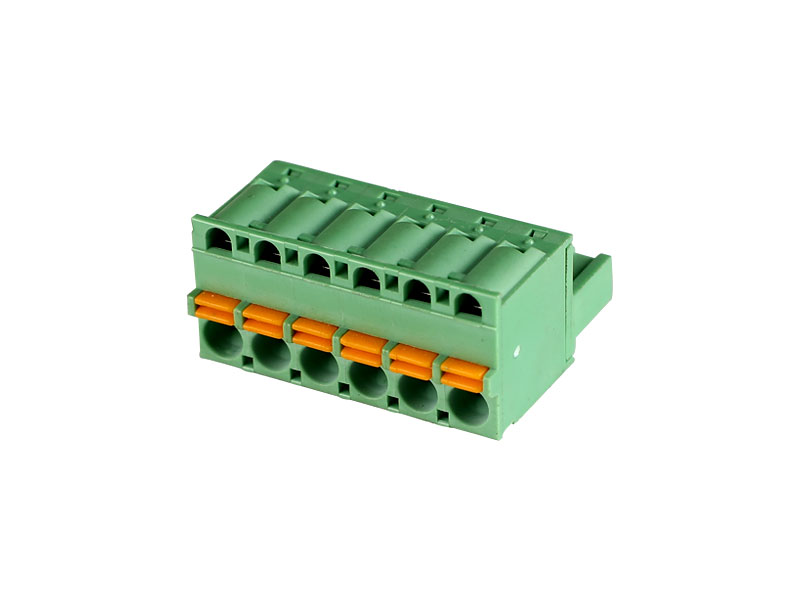

MG235-3.81/5.0 PCB SPRING TERMINAL BLOCK Wholesale

MG235-3.81/5.0 PCB SPRING TERMINAL BLOCK

MG235-3.81/5.0
PCB SPRING TERMINAL BLOCK

0
Views: 832
Contact us

Product parameters

 认证  APPROVAL

 材质及电镀  MATERIAL
 间距 3.81/5.0MM  Pitch 3.81/5.0MM
 极数 1-XXP  Poles 1-XXP
焊针 黄铜、镀锡 Contact Brass、Tin Plated
弹片 不锈钢 Clips Stainless steel
 塑件  PA66.UL94V-0  Housing  PA66.UL94V-0

 电气性能    ELECTRICAL
 额定电压 250V  Rated voltage 250V
 额定电流 10A  Rated current 10A
 耐电压 AC1500V/1Min  Withstanding Voltage  AC1500V/1Min
 使用线径 22-14AWG  Wire range 22-14AWG

 机械性能    MECHANICAL
 温度范围 -40℃～+105℃  Temp.Range -40℃～+105℃
 瞬时温度  +250℃5秒  MAX soldering  +250℃ for 5 sec.
 剥线长度 9-10mm  Strip length 9-10mm



DRAWING DOWNLOAD
