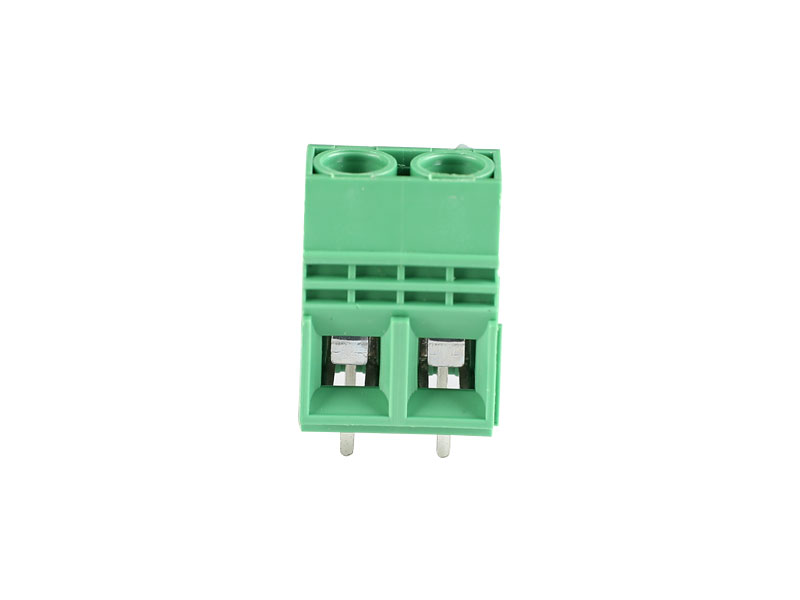

China 15EMGKD-2.5 PLUG-IN TERMINAL BLOCK Factory
+86-0574-63519570/+86-0574-63519552
China 15EMGKD-2.5 PLUG-IN TERMINAL BLOCK Factory
| 材质及电镀 | MATERIAL | ||
| 间距 | 2.5MM | Pitch | 2.5MM |
| 极数 | 2P-12P | Poles | 2P-12P |
| 弹片 | 不锈钢 | Clips | Stainless steel |
| 触点材料 | 磷青铜、镀锡 | Wire guard | Phosphor bronza、Tin Plated |
| 塑件 | PA66.UL94V0 | Housing | PA66.UL94V0 |
| 电气性能 | ELECTRICAL | ||
| 额定电压 | 125V | Rated voltage | 125V |
| 额定电流 | 4A | Rated current | 4A |
| 耐电压 | AC1250V/1Min | Withstanding Voltage | AC1250V/1Min |
| 使用线径 | 20AWG | Wire range | 20AWG |
| 机械性能 | MECHANICAL | ||
| 温度范围 | -40℃～+105℃ | Temp.Range | -40℃～+105℃ |
| 瞬时温度 | +250℃5秒 | MAX soldering | +250℃ for 5 sec. |
| 剥线长度 | 8mm | Strip length | 8mm |
