PLUG-IN TERMINAL BLOCK

5.08MM Terminal Blocks Wholesale

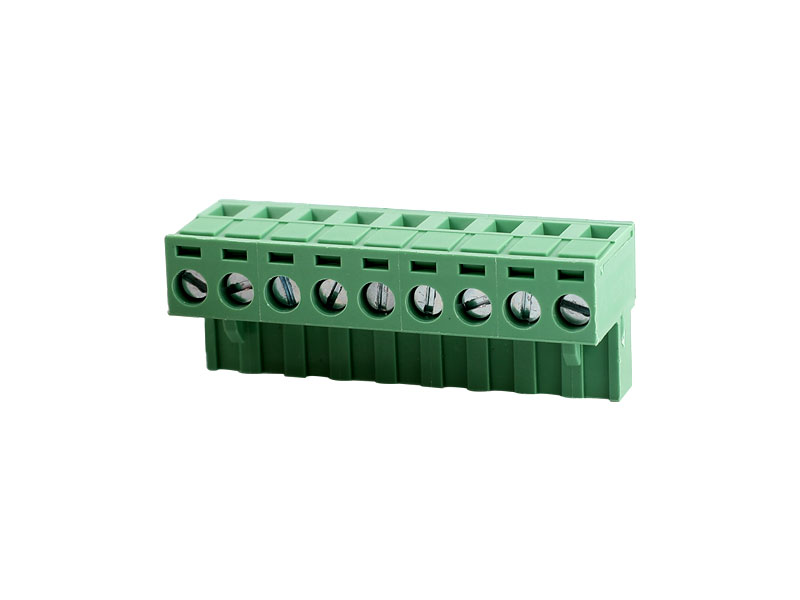

2EMGK-5.0/5.08
PLUG-IN TERMINAL BLOCK

认证		APPROVAL

材质及电镀		MATERIAL
间距	5.0/5.08MM	Pitch	5.0/5.08MM
极数	2P-24P	Poles	2P-24P
螺丝	M2.5、钢、镀锌	Screws	M2.5、Steel、Zinc Plated
方扣	磷青铜、镀镍	Wire cage	Phosphor bronze、Ni plated
焊针	黄铜、镀镍或钢、镀锌	Pin Header	Brass、Ni Plated or Steel、Zince plated
塑件	PA66.UL94V-0	Housing	PA66.UL94V-0

电气性能		ELECTRICAL
额定电压	300V	Rated voltage	300V
额定电流	15A	Rated current	15A
耐电压	AC2500V/1Min	Withstanding Voltage	AC2500V/1Min
使用线径	28-12AWG	Wire range	28-12AWG

机械性能		MECHANICAL
温度范围	-40℃～+105℃	Temp.Range	-40℃～+105℃
瞬时温度	+250℃5秒	MAX soldering	+250℃ for 5 sec.
扭矩	0.5Nm（4.4lb.in)	Torque	0.5Nm（4.4lb.in)
剥线长度	7-8mm	Strip length	7-8mm
