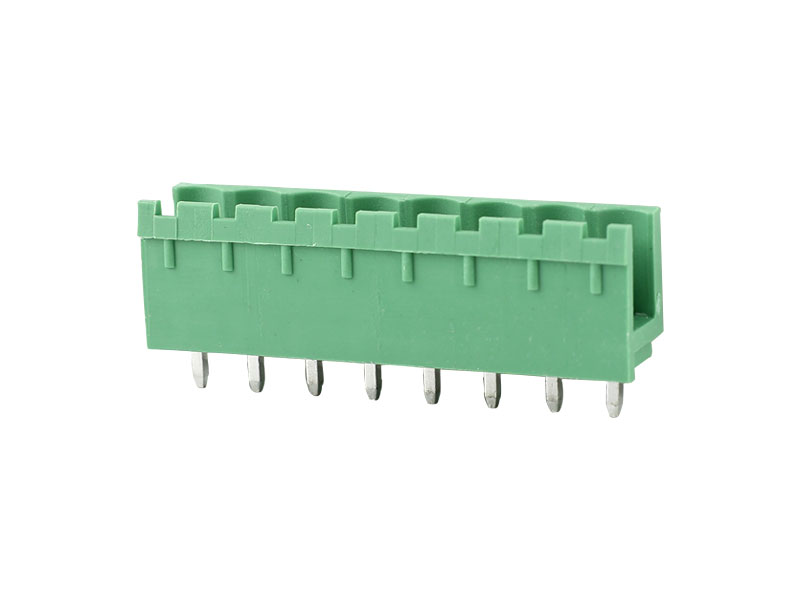

China 2EMGKC-5.0/5.08 PLUG-IN TERMINAL BLOCK Factory
+86-0574-63519570/+86-0574-63519552
China 2EMGKC-5.0/5.08 PLUG-IN TERMINAL BLOCK Factory
| 认证 |  |
APPROVAL | |
| 材质及电镀 | MATERIAL | ||
| 间距 | 5.0/5.08MM | Pitch | 5.0/5.08MM |
| 极数 | 2P-24P | Poles | 2P-24P |
| 螺丝 | M2.5、钢、镀锌 | Screws | M2.5、Steel、Zinc Plated |
| 方扣 | 磷青铜、镀镍 | Wire cage | Phosphor bronze、Ni plated |
| 焊针 | 钢、镀锌 | Pin Header | Steel、Zince plated |
| 塑件 | PA66.UL94V-0 | Housing | PA66.UL94V-0 |
| 电气性能 | ELECTRICAL | ||
| 额定电压 | 300V | Rated voltage | 300V |
| 额定电流 | 10A | Rated current | 10A |
| 耐电压 | AC2500V/1Min | Withstanding Voltage | AC2500V/1Min |
| 使用线径 | 28-12AWG | Wire range | 28-12AWG |
| 机械性能 | MECHANICAL | ||
| 温度范围 | -40℃～+105℃ | Temp.Range | -40℃～+105℃ |
| 瞬时温度 | +250℃5秒 | MAX soldering | +250℃ for 5 sec. |
| 扭矩 | 0.4Nm（3.5lb.in) | Torque | 0.4Nm（3.5lb.in) |
| 剥线长度 | 10mm | Strip length | 10mm |
