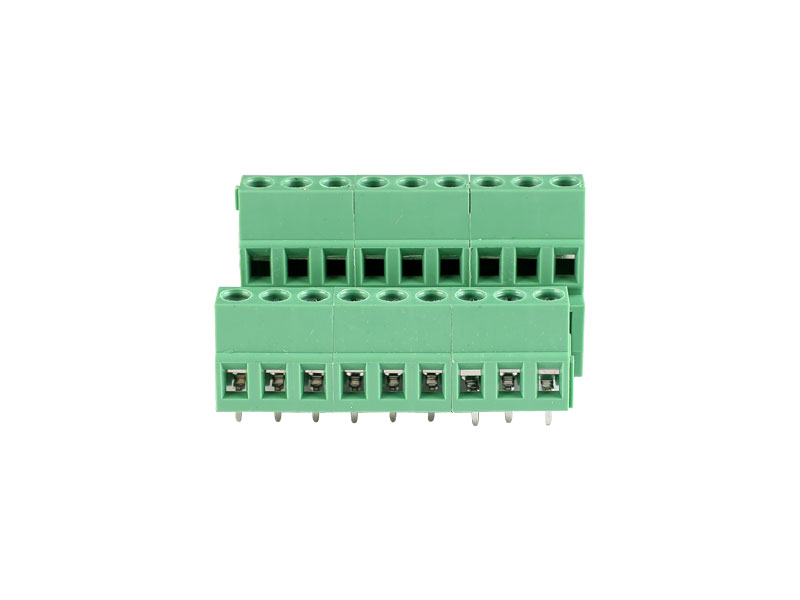

China 2EMGRF-5.0 PLUG-IN TERMINAL BLOCK Factory
+86-0574-63519570/+86-0574-63519552
China 2EMGRF-5.0 PLUG-IN TERMINAL BLOCK Factory
| 材质及电镀 | MATERIAL | ||
| 间距 | 5.0MM | Pitch | 5.0MM |
| 极数 | 2P-22P | Poles | 2P-22P |
| 焊针 | 黄铜、镀镍 | Pin Header | Brass、Ni Plated |
| 塑件 | PA66.UL94V-0 | Housing | PA66.UL94V-0 |
| 电气性能 | ELECTRICAL | ||
| 额定电压 | 300V | Rated voltage | 300V |
| 额定电流 | 10A | Rated current | 10A |
| 耐电压 | AC2500V/1Min | Withstanding Voltage | AC2500V/1Min |
| 机械性能 | MECHANICAL | ||
| 温度范围 | -40℃～+105℃ | Temp.Range | -40℃～+105℃ |
| 瞬时温度 | +250℃5秒 | MAX soldering | +250℃ for 5 sec. |
