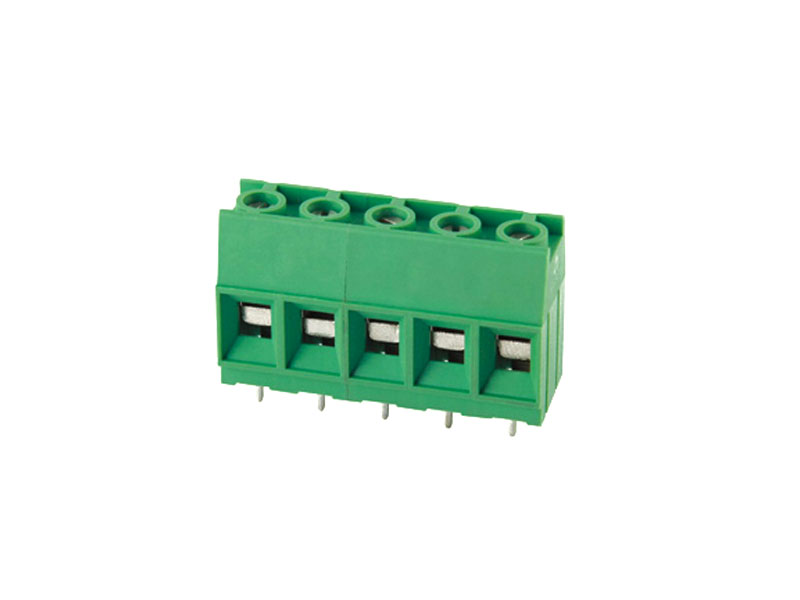

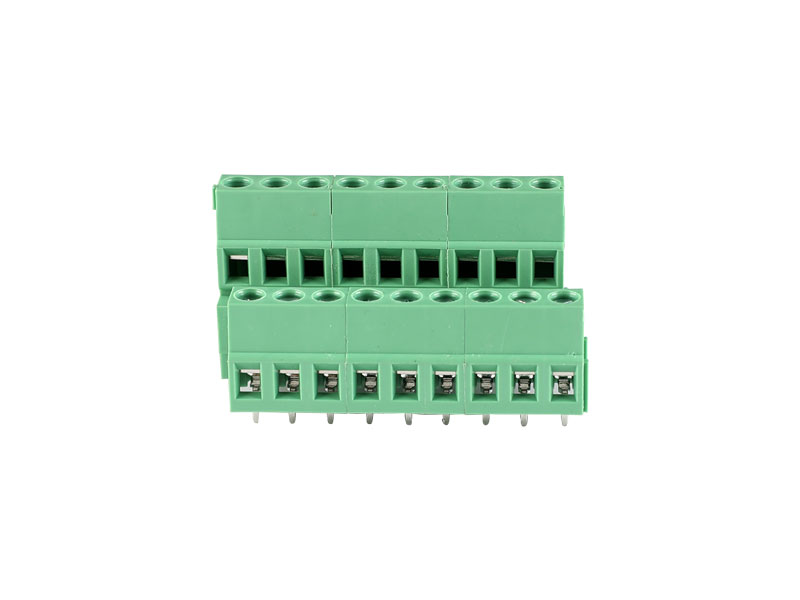

China MGM500K-5.0 PLUG-IN TERMINAL BLOCK Factory
+86-0574-63519570/+86-0574-63519552
China MGM500K-5.0 PLUG-IN TERMINAL BLOCK Factory
| 材质及电镀 | MATERIAL | ||
| 间距 | 5.0MM | Pitch | 5.0MM |
| 极数 | 2P-24P | Poles | 2P-24P |
| 弹片 | 不锈钢 | Clips | Stainless steel |
| 触点材料 | 黄铜、镀锡 | Contact | Brass、Tin Plated |
| 塑件 | PA66.UL94V-0 | Housing | PA66.UL94V-0 |
| 电气性能 | ELECTRICAL | ||
| 额定电压 | 300V | Rated voltage | 300V |
| 额定电流 | 15A | Rated current | 15A |
| 耐电压 | AC1500V/1Min | Withstanding Voltage | AC1500V/1Min |
| 使用线径 | 28-12AWG | Wire range | 28-12AWG |
| 机械性能 | MECHANICAL | ||
| 温度范围 | -40℃～+105℃ | Temp.Range | -40℃～+105℃ |
| 瞬时温度 | +250℃5秒 | MAX soldering | +250℃ for 5 sec. |
| 剥线长度 | 6-7mm | Strip length | 6-7mm |
